Series: RP/RM
UNITOP (RP) ISO 21287 (RM) Compact cylinders
RP/RM
Cylinders Ø 16 ÷ 63 mm with compact overall dimensions in accordance with UNITOP recommendations (RP/ RO series) and with ISO inter-axes (RM/RN series) are available also in non-rotating version and with extended piston. This product, the first one realized with adjustable pneumatic cushioning without changement of dimensions in comparison with an equivalent cylinder without cushioning, allows a considerably higher speed and reduces noise level.
Browse catalogue RP/RM Browse catalogue
Catalogue Download RP/RM Catalogue Download
Technical characteristics RP/RM Technical characteristics

2D-3D CAD RP/RM 2D-3D CAD

Series: RO/RN

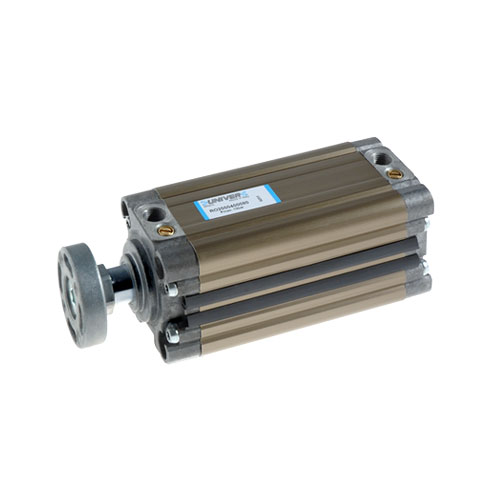

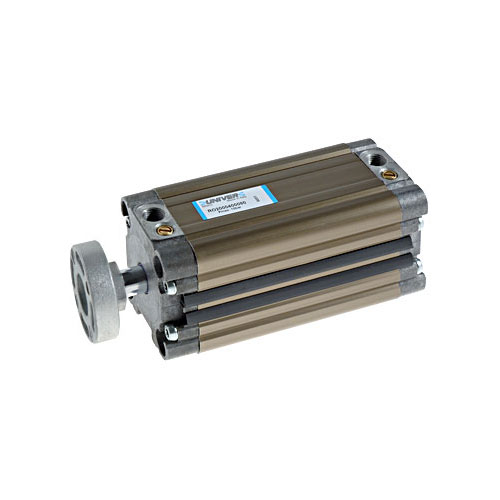

UNITOP (RO) ISO 21287 (RN) Compact cylinders - octagonal piston rod
RO/RN
Cylinders Ø 16 ÷ 63 mm with compact overall dimensions in accordance with UNITOP recommendations (RP/ RO series) and with ISO inter-axes (RM/RN series) are available also in non-rotating version and with extended piston. This product, the first one realized with adjustable pneumatic cushioning without changement of dimensions in comparison with an equivalent cylinder without cushioning, allows a considerably higher speed and reduces noise level.
Browse catalogue RO/RN Browse catalogue
Catalogue Download RO/RN Catalogue Download
Technical characteristics RO/RN Technical characteristics

2D-3D CAD RO/RN 2D-3D CAD

Series: RS
Compact cylinders STRONG with inter-axes, centering diameters and rods ISO 15552
RS
A new series of compact cylinders for long strokes and heavy-duty applications standard supplied with oversized guides and rods, the first one with adjustable pneumatic cushioning without variations in size. The inter-axes, centering diameters and rods are in accordance with ISO 6431 and VDMA 24562 specifications.
Browse catalogue RS Browse catalogue
Catalogue Download RS Catalogue Download
Technical characteristics RS Technical characteristics

2D-3D CAD RS 2D-3D CAD

Series: RQ
Compact cylinders STRONG series Ø 32 ÷ 63 mm
RQ
A new series of compact cylinders for long strokes and heavy-duty applications standard supplied with oversized guides and rods, the first one with adjustable pneumatic cushioning without variations in size. The inter-axes, centering diameters and rods are in accordance with ISO 6431 and VDMA 24562 specifications.
Browse catalogue RQ Browse catalogue
Catalogue Download RQ Catalogue Download
Technical characteristics RQ Technical characteristics

2D-3D CAD RQ 2D-3D CAD

Series: RM/RS Ø 80-100
ISO 21287 Compact cylinders
RM/RS Ø 80-100
- Further development of the compact cylinder series
- Pneumatic cushioning standard
- Magnetic version standard
- STRONG version (interaxes, centering diameters and rods according to ISO 15552)
Browse catalogue RM/RS Ø 80-100 Browse catalogue
Catalogue Download RM/RS Ø 80-100 Catalogue Download
Technical characteristics RM/RS Ø 80-100 Technical characteristics

2D-3D CAD RM/RS Ø 80-100 2D-3D CAD

Series: RV

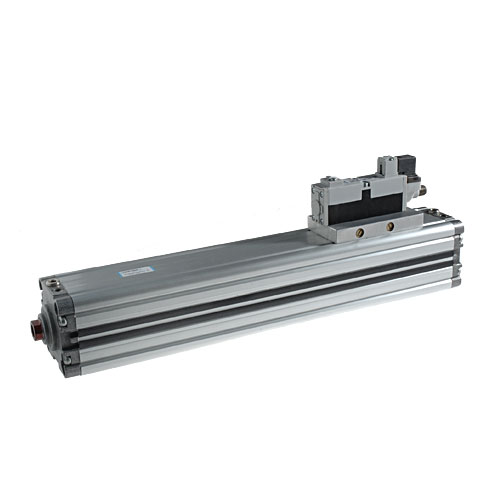

STRONG cylinder RV series with integrated valve (upon request)
RV
Compact cylinders RV series with integrated 5/2-5/3 solenoid valve VDMA series 18 or 26 mm. Pressure and exhaust take place directly from the connection plate between valve and cylinder with the possibility to regulate the exhausts. It is possible to operate the electrical connection M12 also from a PLC.
Browse catalogue RV Browse catalogue
Catalogue Download RV Catalogue Download
Technical characteristics RV Technical characteristics

2D-3D CAD RV 2D-3D CAD
