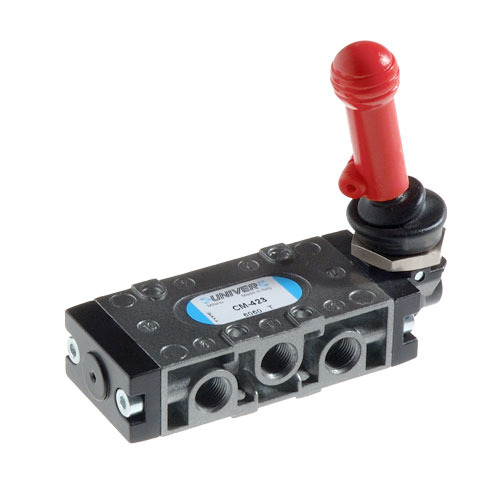

Series: CL/CM
threaded spool valves UNIVERSAL 3/2 - 5/2 - 5/3
CL/CM
-UNIVERSAL Modular System
- Control: manual, mechanical, pneumatic, electric
-Spool system
-High flow rate, high cycle life, suitable for vacuum application
-Modular sub-bases
Browse catalogue CL/CM Browse catalogue
Catalogue Download CL/CM Catalogue Download
Technical characteristics CL/CM Technical characteristics

2D-3D CAD CL/CM 2D-3D CAD

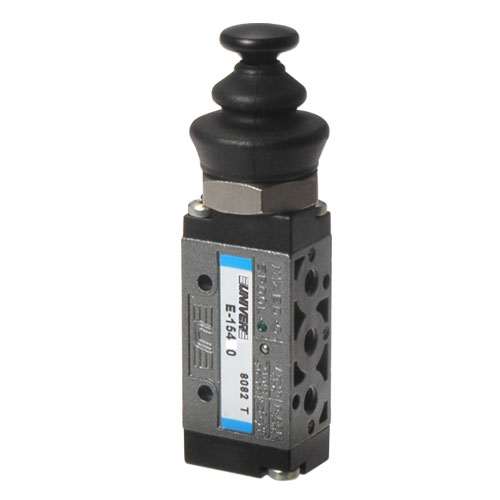

Series: E-15
5/2 M5 valves - mechanical and manual actuation
E-15
- Compact design: 15 mm body
- Original Univer spool system appreciated for decades
- Wide range of actuators and manual operators for panels - original Univer
Browse catalogue E-15 Browse catalogue
Catalogue Download E-15 Catalogue Download
Technical characteristics E-15 Technical characteristics

2D-3D CAD E-15 2D-3D CAD

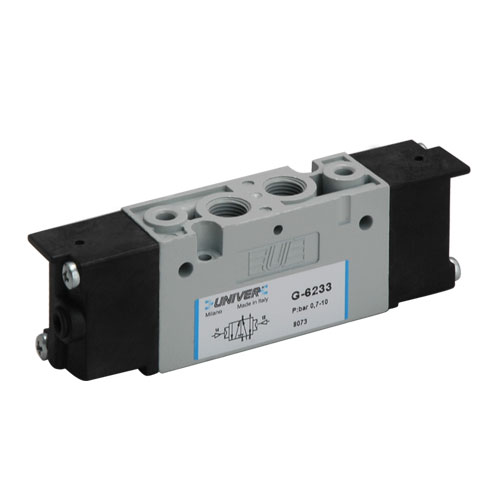

Series: G6
20 mm - G 1/8 Valves and solenoid valves
G6
- G1/8 threaded valve body with traditional Univer spool system
- Version with integrated electrical connection and esternal connection
- Compact design
- High flow rate
- Versions available: 5/2 - 5/3 - 3/2+3/2
Browse catalogue G6 Browse catalogue
Catalogue Download G6 Catalogue Download
Technical characteristics G6 Technical characteristics

2D-3D CAD G6 2D-3D CAD

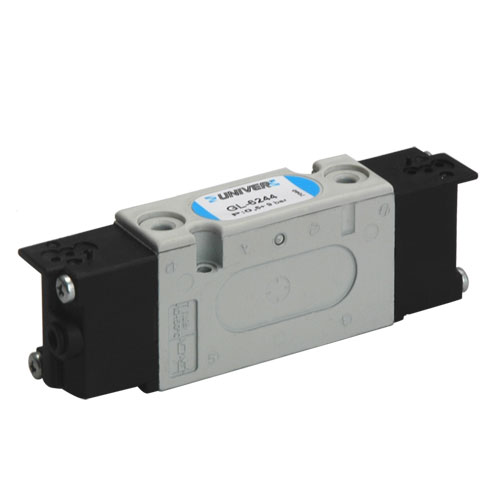

Series: GL6
20 mm - G1/8 Valves and solenoid valves for base assembly
GL6
- Valve body for base assembly with traditional Univer spool system
- Version with integrated electrical connection and external connection
- Compact design
- High flow rate
- Versions available: 5/2 - 5/3 - 3/2+3/2
Browse catalogue GL6 Browse catalogue
Catalogue Download GL6 Catalogue Download
Technical characteristics GL6 Technical characteristics

2D-3D CAD GL6 2D-3D CAD

Series: G7
26 mm G1/8 valves and solenoid valves
G7
- G1/8 threaded valve body with traditional Univer spool system
- Versions available 5/2-5/3
- Aluminium multiple sub-base
Browse catalogue G7 Browse catalogue
Catalogue Download G7 Catalogue Download
Technical characteristics G7 Technical characteristics

2D-3D CAD G7 2D-3D CAD

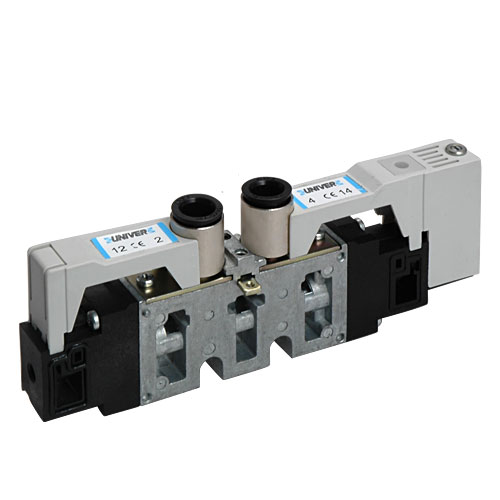

Series: PS
COMBOBOX valves
PS
- Valves with compact design: valve body with integrated sub-base
- High fl exibility:
> possibility of choosing fitting dimension (4-6-8) according to users’ needs
> manifolds from 2 up to 20 valve positions
> electric and pneumatic control
- versions 3/2+3/2 - 5/2 - 5/3
> different pressures (vacuum included)
- Electrical connection: external - multipolar - serial connections
Browse catalogue PS Browse catalogue
Catalogue Download PS Catalogue Download
Technical characteristics PS Technical characteristics

2D-3D CAD PS 2D-3D CAD
