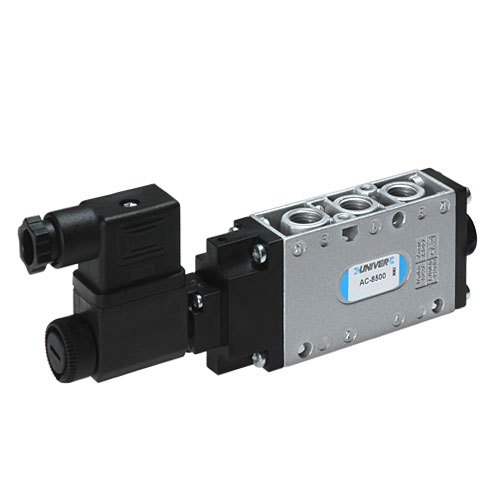

Series: AC
MIXED threaded valves G1/8 - G 1/4 - G1/2
AC
- Mixed commutation system (spool - poppet)
- High flow rate
- Quick response time
- High cycles
- Control: manual, mechanical, pneumatic, electric
- Modular sub-bases
Browse catalogue AC Browse catalogue
Catalogue Download AC Catalogue Download
Technical characteristics AC Technical characteristics

2D-3D CAD AC 2D-3D CAD

Series: CH
2/2 - 3/2 G1/8 poppet valves
CH
Main features: - Closed centers
- High fl ow rate
- Quick response time
Suitable for heavy duties and where the number of mechanical operation is high.
Browse catalogue CH Browse catalogue
Catalogue Download CH Catalogue Download
Technical characteristics CH Technical characteristics

2D-3D CAD CH 2D-3D CAD

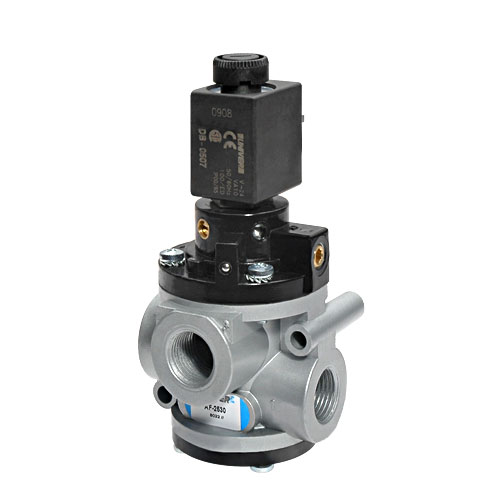

Series: AF
G1/8 ÷ G1 1/2 Poppet valves for compressed air
AF
- Wide range: G1/8 - G1/4 - G3/8 - G1/2 - G3/4 - G1 - G1 1/2
- Original Univer poppet system appreciated for decades
- Suitable for applications where high fl ow rate and high cycles rates are required
- G1 - 2/2 version for blowing
Browse catalogue AF Browse catalogue
Catalogue Download AF Catalogue Download
Technical characteristics AF Technical characteristics

2D-3D CAD AF 2D-3D CAD

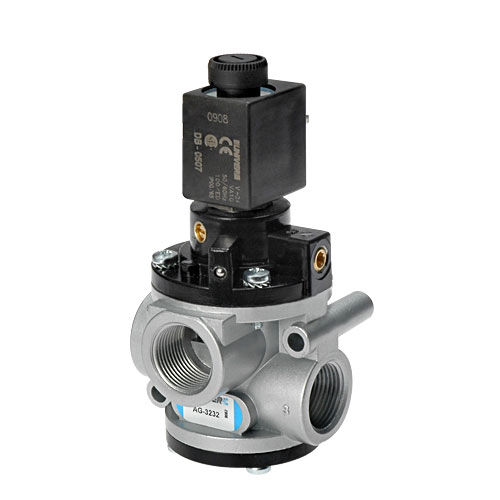

Series: AG
Poppet valves for vacuum G1/8 ÷ G1 1/2
AG
- A complete range: G1/8 - G1/4 - G3/8 - G1/2 - G3/4 - G1 - G1 1/2
- Original Univer poppet system appreciated for decades
- Servoassisted version
- A complete range of solenoid valves and pneumatic valves for vacuum with connection from G1/8 ÷ G1 1/2 to satisfy all requirements
- The internal system ensures high reliability and long life
Browse catalogue AG Browse catalogue
Catalogue Download AG Catalogue Download
Technical characteristics AG Technical characteristics

2D-3D CAD AG 2D-3D CAD

Series: AI
Miniature limit switches
AI
Univer limit switches, mounted on sub-bases with threaded connections or with quick couplings, may be combined with diff erent types of manual operators for panel mounting complying with the various need of the plant.
Browse catalogue AI Browse catalogue
Catalogue Download AI Catalogue Download
Technical characteristics AI Technical characteristics

2D-3D CAD AI 2D-3D CAD

Series: AI-JET
Pneumatic switches
AI-JET
- Light with compact design
- Low operating force and high response time
- M5 threaded connections or push-in fi tting tube Ø4
- Wide range of actuators and manual overrides for mounting panel (Original Univer)
Browse catalogue AI-JET Browse catalogue
Catalogue Download AI-JET Catalogue Download
Technical characteristics AI-JET Technical characteristics

2D-3D CAD AI-JET 2D-3D CAD

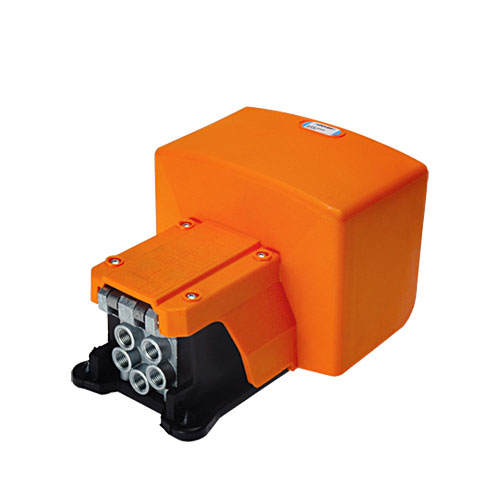

Series: AM
Pneumatic and electric foot valves
AM
- Double poppet system appreciated for its reliability and high flow rate
- Aluminium valve body and pedal lever to the max strenght
- Available with and without protection (in the latter case the protection is to be realized by the machine builder according to the current rules)
- Available with safety devices to prevent unintentional operations
- Available with pneumatic servo-assitance in case of minimum stress
- Electric foot valves with single or double microswitch complete the foot valve range
Browse catalogue AM Browse catalogue
Catalogue Download AM Catalogue Download
Technical characteristics AM Technical characteristics

2D-3D CAD AM 2D-3D CAD
